VisibleThread is a multi-user, server-based application accessed via a web browser.
Deployment Models and Requirements
An overview of installation requirements and deployment models can be found here:
This guide assumes that you have downloaded the VisibleThread software. If you have not yet done so, please follow the instructions at http://support.visiblethread.com/entries/22360102-how-to-download-the-visiblethread-software to download the software.
These instructions can also be found in the VisibleThread Server configuration guide, which can be downloaded from this link:
The deployment process is as follows:
- Deploy the VisibleThread virtual machine
- Upload your license file
- Setup the VisibleThread users
- Upgrade the VisibleThread server to the latest release.
1. Deploy the VisibleThread server
We support all major types of virtualization platforms.
You have these options for your deployment:
- VMWare ESX - If you run VMWare ESX type infrastructure (e.g. vSphere, vCenter, ESXi) internally, you can deploy our virtual appliance to that, see http://support.visiblethread.com/entries/22372966-deploying-visiblethread-on-vmware-esx for more details.
- VMWare Workstation - If you can identify a specific dedicated box, you can put VMWare Workstation on that box to ‘run’ our virtual appliance. See here http://support.visiblethread.com/entries/80371806-Deploying-VisibleThread-using-VMWare-Workstation for details.
- Amazon AWS / GovCloud - For AWS / GovCloud users see https://support.visiblethread.com/hc/en-us/articles/214225666-Deploying-VT-Docs-in-Amazon-AWS
- Azure, Hyper-V - We offer a Red Hat RPM for VisibleThread Docs please visit the following link for a How To Deploy Guide: https://support.visiblethread.com/hc/en-us/articles/360022255791-How-To-Deploy-VisibleThread-Docs-on-Red-Hat
Contact our support team on firstname.lastname@example.org for any questions on these options.
2. Upload your license file
Open a web browser and type the following in the address bar: https://<VisibleThread IP Address>
If you see a warning about an untrusted connection, it is safe to accept this warning.
You should be prompted for the VisibleThread admin username and password - these are 'visiblethread' and 'password' :
You should now see a screen similar to the one below, prompting you to upload your VisibleThread license.
Click the 'browse' button and select the license file supplied by the VisibleThread support team and upload it to the VisibleThread server.
Once the license file has uploaded successfully, click 'continue' to proceed to the VisibleThread user administration area.
3. Setup the VisibleThread users
VisibleThread users are managed via the VisibleThread administration application. The VisibleThread administration page is accessed via https://<VisibleThread Virtual Appliance IP>/sandboxAdmin. This page is protected by a username and password. By default the username is 'visiblethread' and the password is 'password'.
VisibleThread users are defined in terms of sandboxes. A VisibleThread sandbox is a collection of users and their documents. A sandbox allows multiple users work on the same set of documents.
The VisibleThread server contains a pre-configured 'Default Sandbox'. For typical deployments, all users in VisibleThread will exist within this sandbox.
To add users to this sandbox click on the 'Add/Remove users' link in the rightmost column and follow the steps described in http://support.visiblethread.com/entries/22195103-How-do-I-add-remove-users-from-VisibleThread
4. Testing the deployment
To verify VisibleThread has been configured correctly, you can attempt to log on to the application using the username and password of a user you created in the previous step.

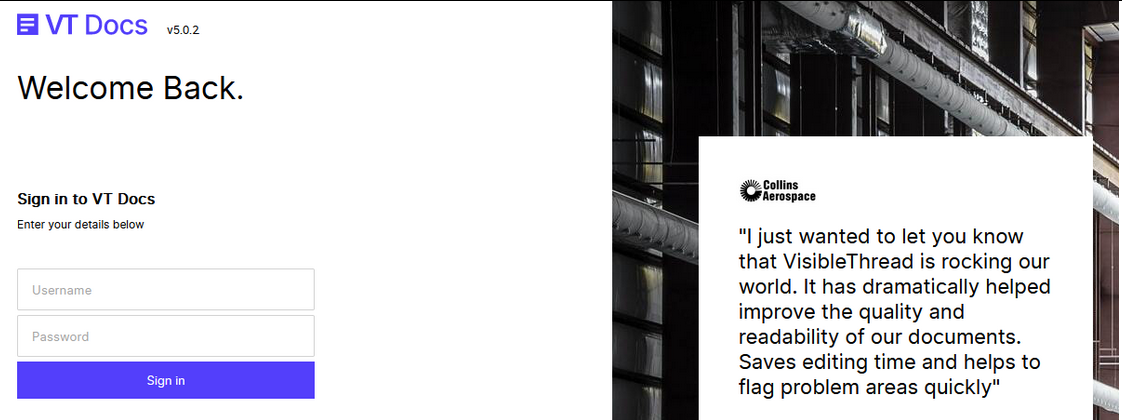

- Point your browser at https://< VisibleThread Virtual Appliance IP Address> and you will be presented with the dashboard sign-in screen. Enter the details of a VisibleThread user created in the previous section.
If the sign-in has been successful you should see the VisibleThread dashboard as per the screenshot below.
5. Securing your server
To secure/lock down your VisibleThread server you should follow the steps in this article: Securing a VisibleThread on-premise server
