How to install VT Writer on Windows

Minimum Server Specs

16GB RAM
2 CPU Cores
200GB disk

Windows installs have been tested and verified on the following versions:
Windows Server 2016, 2019, 2022, 2025



Note: VT Writer requires port 443 for users to access the application from web browser.



Installing VT Writer

To install VT Writer on Windows, download the .exe file from here.

To verify that the download was completed successfully, you can check the hash by running the following command:

certutil -hashfile vtwriter_windows-x64_5_2_1_5.exe MD5

The valid MD5 Hash is: 510f2c1f1c9f56f424184138f66e9808



VT Writer requires a HTTP server. There are two ways to deploy VT Writer with a HTTP Server:

  1. Install Apache HTTP server as part of the VT Writer installation
  2. Use a Windows IIS server and configure it to work with VT Writer

Install Using Apache Web Server

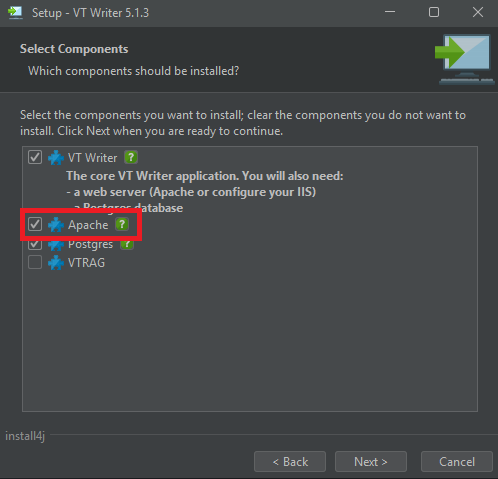

Run the install file and follow the install wizard instructions. If you wish to use the Apache web server make sure the box is checked. All configuration for Apache web server will be done as part of the install.






Install Using IIS

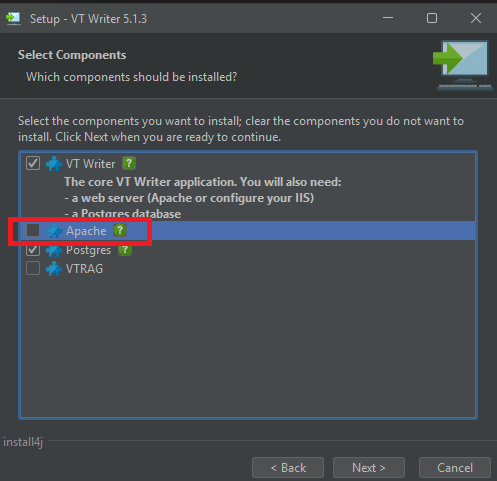

If you wish to use IIS as a reverse proxy and for SSL termination make sure to uncheck the Apache box. We do NOT configure IIS as part of the install. Once the install wizard has finished, please follow this guide to configure IIS.






Opening Port 80 and 443

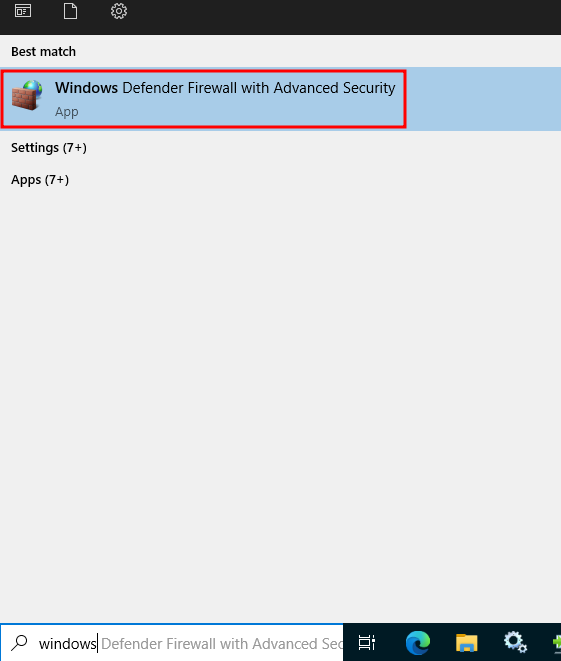

VT Writer will need access to port 80 and 443 on your firewall. Note that Apache and IIS are configured to automatically re-direct port 80 to 443. Open Windows Defender Firewall with Advanced Security.

Windows Start search result for Windows Defender Firewall with Advanced Security

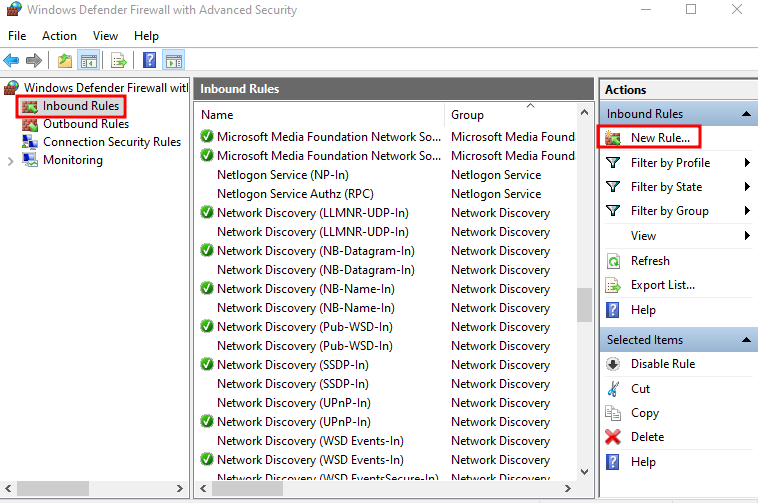

In the Inbound Rules tab, select New Rule.



Windows Defender Firewall with Inbound Rules selected and the New Rule action highlighted

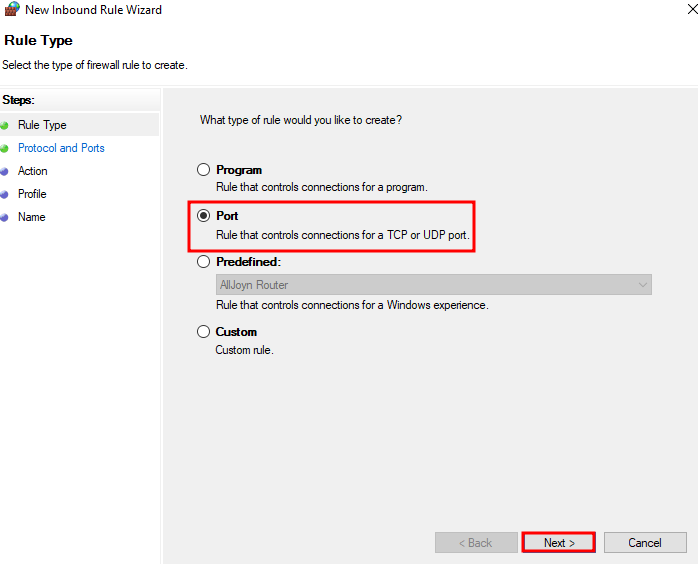

Then select Port and click Next.



New Inbound Rule Wizard Rule Type step with Port selected

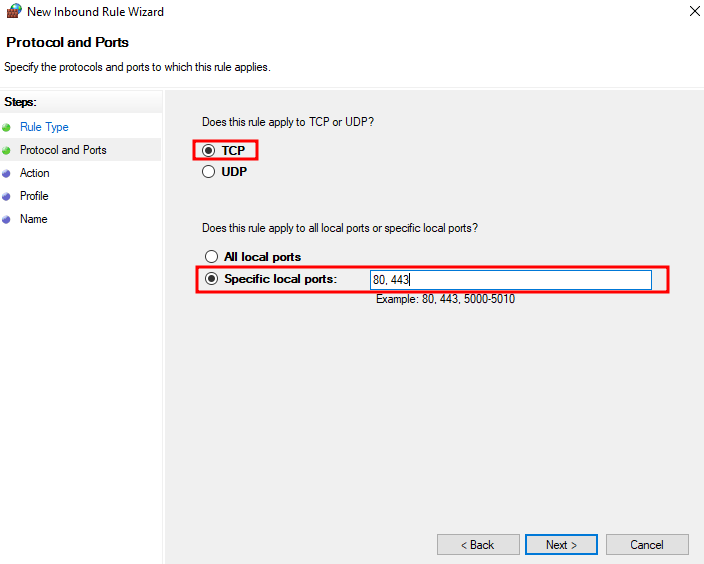

Next select TCP and Specific local ports. In the text field enter 80, 443 as pictured below. Then click Next.


New Inbound Rule Wizard Protocol and Ports step with TCP and specific local ports 80, 443

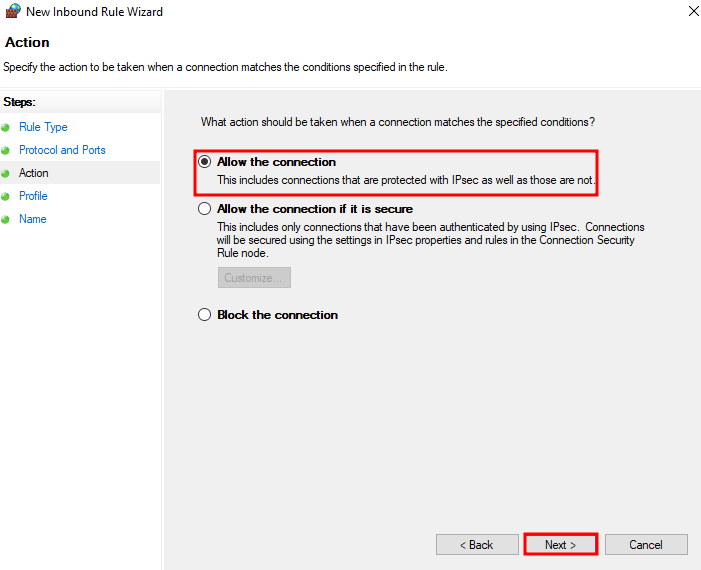

Select Allow the connection and click Next.


New Inbound Rule Wizard Action step with Allow the connection selected

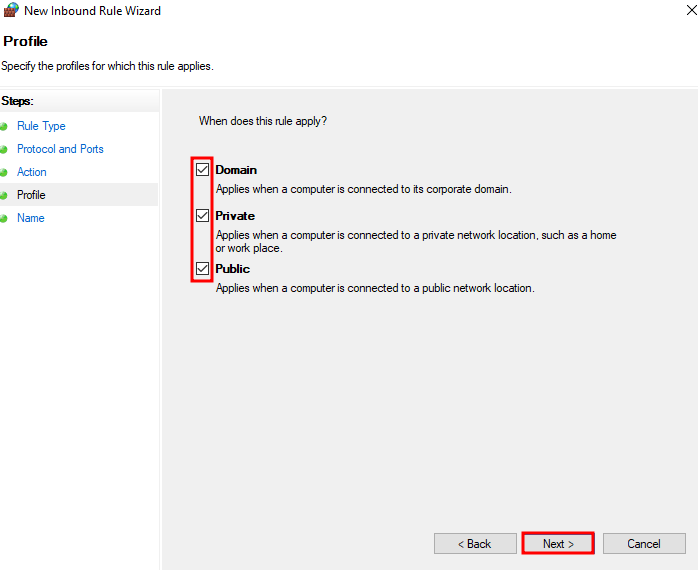

Next, ensure all boxes are checked as pictured below and click Next.


New Inbound Rule Wizard Profile step with Domain, Private and Public all checked

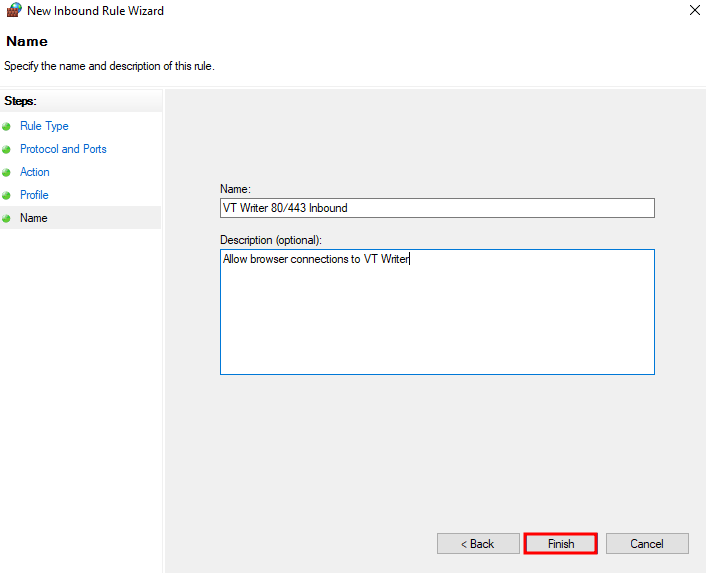

Lastly, give your new inbound rule a name and description. An example is provided below. Once finished, click Finish.


New Inbound Rule Wizard Name step with the example name VT Writer 80/443 Inbound and a short description



VT Writer should now be accessible via HTTPS!



Installing and configuring vtrag service

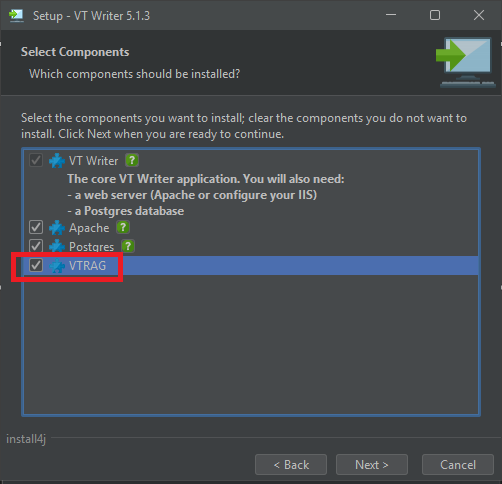

If you want to install the VTRAG service check the box during the install. This will install the service but it will NOT configure it. To configure the vtrag service follow the article below.


https://support.visiblethread.com/hc/en-us/articles/26262307270674-VTRAG-Configuration-Guide

For further configuration, please see our configuration guide.
